Engine kit Derbi Euro 3, Euro 4 Polini source 50

Engine kit Derbi Euro 3, Euro 4 Polini source

396,50 €

PACK00904

IN STOCK

Delivery possible from Tuesday 22 July

Get 41 Points fidelity8,20 €


Polini

We also recommend

Description

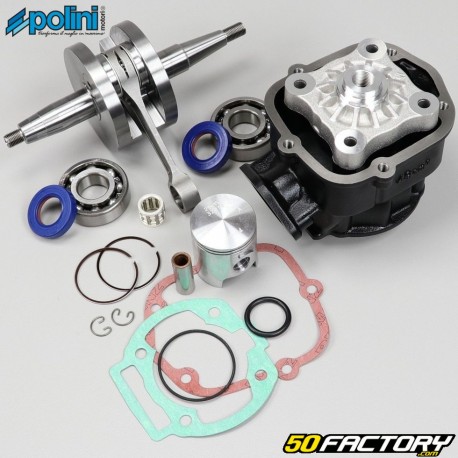

Cylinder, piston, crankshaft and bearings kit Polini Derbi Euro 3 and Euro 4

Pack high engine and low engine new adaptable for motorcycle 50cc Derbi, Gilera, Aprilia... with motor Derbi Euro 3 and Euro 4 from 2006.

Includes

  • 1 x cylinder block
  • 1 x piston
  • 1 x cylinder head stud (without cylinder head cover)
  • 1 x high engine seal kit
  • 2 x piston rings
  • 2 x circlips
  • 1 x gudgeon pin
  • 1 x crankshaft
  • 1 x Piston Needle Cage
  • 2 X crankshaft bearings 6204 C4
  • 1 x left crankshaft oil seal
  • 1 x right crankshaft oil seal

Technical characteristics and dimensions of the engine pack

  • Brand of the set: Polini
  • Model: Special Kit
  • Manufacturer no .: 109.0018.1
  • Cylinder block material: cast iron
  • Cylinder color: black
  • Piston diameter: 39.94 mm
  • Piston pin diameter: 12 mm
  • Sold with cylinder head stud, without cylinder head cover (same as original)
  • Connecting Rod Inner Diameter: 17mm
  • Outer Diameter Crankshaft Bearing Seats: 20 mm
  • Crankshaft total length: 180mm
  • Right side crankshaft thread diameter: 10 mm
  • Left side crankshaft thread diameter: 10 mm
  • Crankshaft bearing dimensions: 20x47x14 mm
  • Inner diameter of the bearings: 20 mm
  • Outer diameter of the bearings: 47 mm
  • Bearings width: 14 mm
  • Oil seal dimensions: 20x35x7 mm
  • Inner diameter: 20 mm
  • Outer diameter: 35 mm
  • Thickness: 7 mm

COMPATIBLE MODELS

Compatibility models for guidance, it is advisable to disassemble the part to be replaced beforehand and check the correspondence with pictures and dimensions indicated on the site.

  • RS 50 2T (2006 to 2010)
  • RS 50 2T (from 2018)
  • RS4 50 2T (2011 to 2017)
  • RX 50 2T (2006 to 2010)
  • RX 50 2T (2011 to 2017)
  • RX 50 2T (from 2018)
  • SX 50 2T (2006 to 2010)
  • SX 50 2T (2011 to 2017)
  • SX 50 2T (from 2018)
  • GPR 50 2T (2006 to 2010)
  • GPR 50 2 (2011 - 2017)
  • GPR Nude 50 2T (2006 to 2010)
  • Senda R DRD Pro 50 2T (2006 to 2014)
  • Senda R DRD X-Treme 50 2T (2011 to 2017)
  • Senda R DRD X-Treme 50 2T (from 2018)
  • Senda R DRD racing 50 2T (2006 to 2010)
  • Senda R X-Race, X-Treme 50 2T (2006 to 2010)
  • Senda SM DRD EVO 50 2T (2008 to 2010)
  • Senda SM DRD Pro 50 2T (2006 to 2014)
  • Senda SM DRD X-Treme 2T (2011 to 2017)
  • Senda SM DRD racing 50 2T (2006 to 2010)
  • Senda SM Limited 50 2T (from 2018)
  • Senda SM X-Race, X-Treme 50 2T (2006 to 2010)
  • Senda SM Xtreme 50 2T (from 2018)
  • Senda SM racing 50 2T (from 2018)
  • RCR 50 2T (2006 to 2010)
  • RCR 50 2T (2011 to 2017)
  • RCR 50 2T (from 2018)
  • SMT 50 2T (2006 to 2010)
  • SMT 50 2T (2011 to 2017)
  • SMT 50 2T (from 2018)
  • KLE SM 50 2T (from 2010)
  • KLE TT 50 2T (from 2010)
  • SC3 SM 50 2T (from 2013)
  • SC4 Enduro 50 2T (from 2013)
  • N01 Naked 50 2T (2013 to 2017)
  • RME Enduro 50 2T (2010 to 2017)
  • RME Enduro 50 2T (from 2018)
  • RME Factory 50 2T (2010 to 2017)
  • RME Factory 50 2T (from 2018)
  • RME Race 50 2T (2010 to 2017)
  • RME Race 50 2T (from 2018)
  • S01 Scrambler 50 2T (2013 to 2017)
  • S01 Scrambler 50 2T (from 2018)
  • SM 50 2T (2010 to 2017)
  • SM 50 2T (from 2018)
