MBK 51 PASSION Data Sheet
Here you can find everything there is to know about your MBK 51 PASSION moped as par example the size of the front tire and the rear tire, the compatible cylinder, the brake pads or even the fairings that can be adapted to your MBK 51 PASSION 2 time moped. Also discover on this detailed sheet the specific characteristics of the vehicle such as its size, its weight, its cylinder capacity, its date of manufacture, the capacity of its tank, etc.

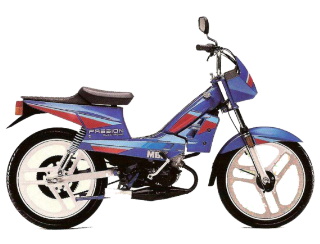

MBK 51 PASSION
Moped 50cc
Type: Moped
Profile: Moped
Brand: MBK
Model: 51 PASSION
Production Year : of 1989 1991 to
Dry weight: 55 kg
Fuel tank : 4,5 Liters
Technical specifications MBK 51 PASSION
Motor parts
Engine: single cylinder 2 AF time 87
Starter : kick-start
Cooling : liquid
Cylinder capacity: 49,9 cm3
Max power: 3.3cv at 6 000 rpm
Ignition: electronic CDI
Supply : carburettor Gurtner Ø 14mm
Transmission: Primary: Strap, Secondary: String
Cycle parts
Frame: steel monocoque
Front suspension: telescopic fork
Rear suspension: hydraulic shock absorbers
Front brake: drum Ø 90 mm
Rear brake : drum Ø 90mm
Front tire: 2 1/4 - 17"
Rear tire: 2 1/4 - 17"
Equipment
Counter: Yes Tachometer : no
Pedals: no
