Plug - socket technical VESPA 98 1st series (1946)

Here you will find all the information concerning your two-wheeled VESPA 98 1st series (1946) as par example the size of the front tire and the rear tire, the compatible piston cylinder, the brake pads, the battery, or even the fairings adaptable to your VESPA 98 1st series (1946). Also discover on this detailed sheet the characteristics specific to the vehicle such as its size, its weight, its cylinder capacity, its date of manufacture, the capacity of its tank, etc.

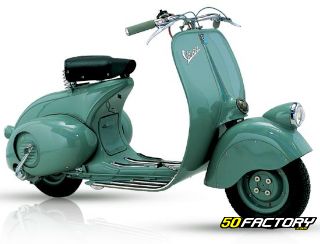

VESPA 98 1st series (1946)

Scooter 100cc

Type: 100 cc scooter

Brand: VESPA

Model: 98-1st series (1946)

Production Year : 1946

Dry weight: 60 kg

Fuel tank : 5 liters

Technical characteristics of the VESPA 98 1st series (1946)

Motor parts

Engine: Single cylinder, 2 time

Starter : Kick-start

Cooling : Air

Cylinder capacity: 98 cm3

Max power: 3,2 ch at 4 300 rpm.

Supply : Dell'Orto T2 16/17 carburetor

Gearbox : 3-speed manual

Cycle parts

Frame: Steel monohull

Front suspension: Single arm with trailing wheel travel: nc

Rear suspension: nc, travel: nc mm

Front brake: Drum Ø 125 mm,

Rear brake : Drum Ø 125 mm

Front tire: 3,50 x 8 "

Rear tire: 3,50 x 8 "

Seat height: 700 mm
