Tutorial: How to change the wiring harness DERBI SENDA - GILERA SMT RCR (2004 - 2010)

This tutorial aims to help you replace your wiring harness by identifying all the connectors with the details of each socket and the associated original colors.

These photos and indications can help you for different models of 50 with box but it specifically concerns electrical wiring for Derbi Senda Xtreme Xrace, Gilera Smt and Rcr (only models 2004 to 2010). The relevant harness is available here.

Please note, this harness fitted to several models and brands, it is possible that certain harness connectors are not used on your motorcycle.

For more readability we have detailed the composition of the electrical harness in three parts: FRONT, CENTRAL and REAR.

electric beam derbi senda and gilera smt

Electrical harness Derbi Senda, Gilera SMT, RCR (2004-2010)

HOW TO CHANGE YOUR WIRING HARNESS ON A 50CC MOTORCYCLE

Front part:

FRONT PART: Overview of the front part of the wiring harness Derbi Senda.

FRONT PART: Front brake light switch: red / black + green wires.

FRONT PART: Start switch (neiman): red / black + red + yellow / green wires.

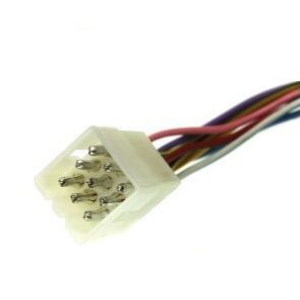

FRONT PART: Speedometer: son blue + yellow + black / blue + pink + purple + white / blue + yellow / black + red / black + green / yellow.

FRONT PART: Towers count: red + yellow threads.

FRONT PART: Left handlebar (clutch handle): pink + green / yellow + yellow + white / yellow + blue + orange + purple + black wires.

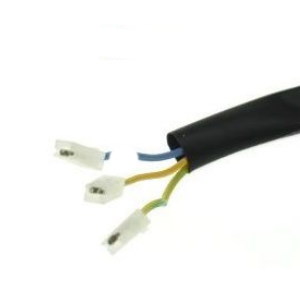

FRONT PART: Lighthouse: yellow / green + white / yellow + blue

FRONT PART: Neiman thread: green / black thread

FRONT PART: Front turn signals: pink wire (front right) + purple (left front) + 2 x yellow / green (masses)

Central part :

CENTRAL PART : Overview of the central part of the wiring harness Derbi Senda.

CENTRAL PART : General mass: yellow and green file

CENTRAL PART : Stator: red wire + green wire

CENTRAL PART : Horn: brown file + dark green wire

CENTRAL PART : Fan and radiator temperature sensor: yellow green file + white wire + dark green wire

CENTRAL PART : Carburetor heater probe: Light gray wire + dark gray wire

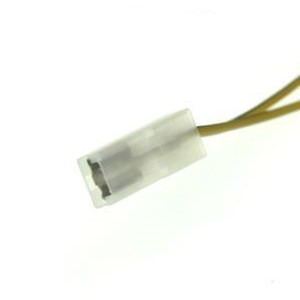

CENTRAL PART : Cylinder head temperature sensor: 2 X dark yellow wires

Rear part :

REAR PART : Overview of the rear part of the wiring harness Derbi Senda.

REAR PART : LED indicators: yellow / green + blue / white + blue / black + yellow / black.

REAR PART : Oil level probe: yellow / green + blue / black wires.

REAR PART : Probe gasoline level: yellow / green + blue / white wires.

REAR PART : Voltage regulator: red + orange + yellow + yellow / green + black / red + yellow / red wires
REAR PART : Mass: yellow / green thread.

REAR PART : Red light: yellow / green (mass) + yellow (stop) + green (position).

REAR PART : Battery: yellow / green + red wires.

REAR PART : Rear brake light switch: red / black + green wires.

REAR PART : Rear indicators: pink wire (rear right) + purple (rear left) + 2 x yellow / green (masses).

REAR PART : Carburetor heater case: yellow + green / yellow + white / green + gray wires.
