Technical data HONDA Fourtrax 300 4x4

Here you will find all the information about your quad as par example the size of the front tires and the rear tires, the compatible piston cylinder, the brake pads, the battery, or even the adaptable fairings on your ATV HONDA Fourtrax 300. Also discover on this detailed sheet the characteristics specific to the vehicle such as its size, its weight, its cylinder capacity, its date of manufacture, the capacity of its tank, etc. .

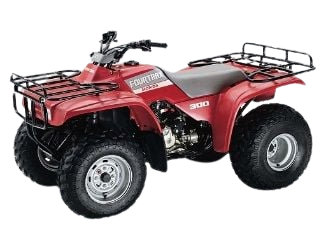

ATV HONDA Fourtrax 300x4

HONDA Fourtrax


Quad 300 cc

Type: Quads, ATVs

Profile: Quad adventurer / utility

Brand: HONDA

Model: four trax 300

Classification: L7e

Production Year : of 1988 2000 to

Dry weight: 220 kg

Fuel tank : 17 liters



Technical characteristics of the HONDA Fourtrax quad

Motor parts

Engine: single cylinder 4 time

Starter : Electric and launcher

Ignition: electronic

Cooling : air

Cylinder capacity: 282 cm3

Supply : Carburetor Ø 32 mm

Training: 4 mo wheelstrices

Transmission: automatic, 5 reports

Cycle parts

Front suspension: Independent, double wishbone, 2 Arvin shocks

travel 129mm

Rear suspension: Swingarm, Arvin monoshock

travel 129mm

Front brake: Sealed drums,

Rear brake : Sealed drum

Front tires: 23 x 8 - 11

Rear tires: 25 x 11 - 9

Seat height: 876 mm

Equipment

Tachometer: nc

Fuel gauge: nc

Reverse: Yes

Power steering: no

Key tank cap: nc
