Piston cylinder complete Yamaha PW 80 Fifty

Upper engine Fifty Yamaha PW80

Complete new piston liner kit adaptable for mini motorcycle cross for children, pocket bike 80cc Yamaha PW, Piwi, Pee-wee, Peewee, Peewi, Piwee and Jianshe JS 80, JS80. Also consider replacing the piston pin needle cage of dimension 12x15x16.3 mm which is not supplied in the high engine kits (this bearing is sold separately).

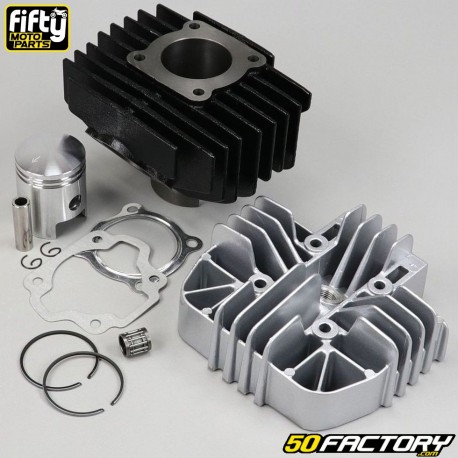

This piston cylinder block kit includes

• 1 x cylinder block
• 1 x piston
• 1 x cylinder head
• 1 x set of seals
• 2 x piston rings
• 2 x circlips
• 1 x gudgeon pin
• 1 x needle cage

Technical characteristics and dimensions of the cylinder block kit

• Mark: Fifty moto parts
• Cylinder color: black
• Color of cylinder head: gray
• Cylinder block material: cast iron
• Piston diameter: 47 mm
• Piston pin diameter: 12 mm
• Cylinder fixing center distance: 53 mm
• Needle cage dimensions: 12x15x16.3 mm
