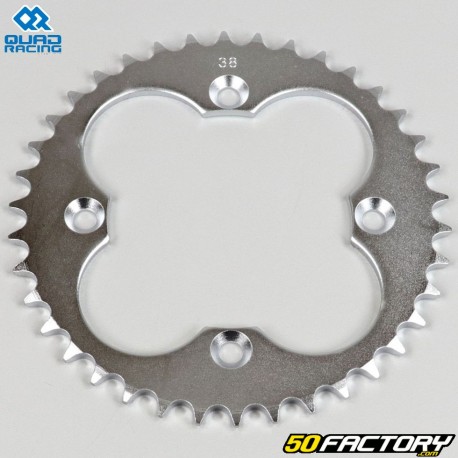

Crown 38 steel teeth 520 Honda TRX 250, 300, 400, 450, XNUMX QuadRacing

Quad tooth sprocketRacing HondaRX 250, 300, 400 and 450

Transmission tray par new chain adaptable for 250cc, 300cc, 400cc and 450cc Honda TRX quads.

Technical characteristics and dimensions of the rear toothed pinion

• Brand: QuadRacing
• Drive train type: 520
• Number of teeth: 38
• Material: steel
• Colour : grey
• Number of fixing holes: 4
• Diameter of fixing holes: 10 mm
• Type of crown mounting holes: countersunk
• Fixing centers: 92 mm and 130 mm
• Rear sprocket dimensions shown on the diagram

It is essential that you you check the type of drive train you need before ordering. On small motorcycles, most 50cc use the 420 (6mm width, 12.7mm pitch) but some 50s and most 125s use the 428 (7mm width, 12.7mm pitch) even for 125 in 520 (6mm width, 15.8mm pitch). All drive train parts, i.e. front sprocket, chain and rear sprocket, absolutely must be of the same type.
