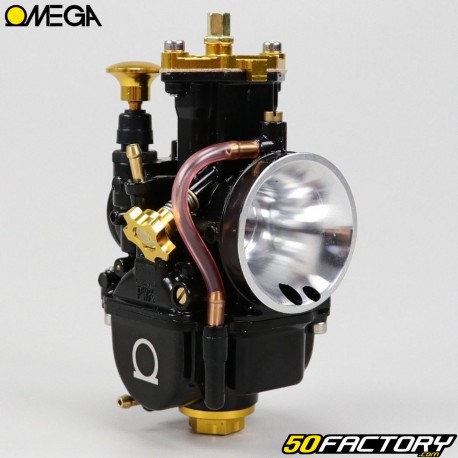

Omega PWK 21 Carburettor

Omega PWK 21 Carburettor

New time engine intake system adaptable for motorcycle, scooter, quad, moped ... with modifications. The carburetor is the system that serves to supply the engine with a gaseous mixture (air and gasoline, even oil on models for 2 time).

Carburettor technical characteristics and dimensions

• Brand: Omega
• Type: PWK
• Diameter: 21 mm
• Colors: black and golden yellow gold
• Float chamber: aluminium

• Throttle cable connection: right
• Button Cold start Choke Starter Valve

• Outer diameter air filter side: 50 mm
• Intake Pipe Side Outer Diameter: 35 mm

• Vacuum connection (connected to the fuel tap): no
• Lubrication connection (connected to the oil pump): no

For the assembly of this large diameter carburettor, you must mount a compatible intake pipe and air filter.
The outer diameter on the air cleaner side of this carburetor is 50mm, you can order the straight foam filter, straight horn type grid filter, angled foam air filter or TPR air filter Factory.
As with most PWK carburettors, the outside diameter on the intake pipe side is 35mm, so choose your intake pipe according to your engine type.
For mopeds Peugeot 103 with housings Malossi intake manifold CBE. For MBK 51 and Peugeot 103 with engine cases Polini, the second intake manifold CBE.
For motorized mécaboîtes AM6 Minarelli, you can choose between the adjustable pipe Barikit Polini and the intake pipe adaptable to depression.
For 50 engine motorcycles Derbi, you have the choice between intake pipe Polini and the Barikit.
All the references indicated are to be found opposite in the tab "we also recommend".

OMEGA is the famous brand of the 90s specializing in performance parts for mopeds and scooters. Disappeared for twenty years, it makes a comeback in 2022 thanks to its new owner and distributor 50 Factory. The objective is to offer a complete range of quality parts and accessories, with impeccable design and finish, in order to satisfy today's cycling enthusiasts.
