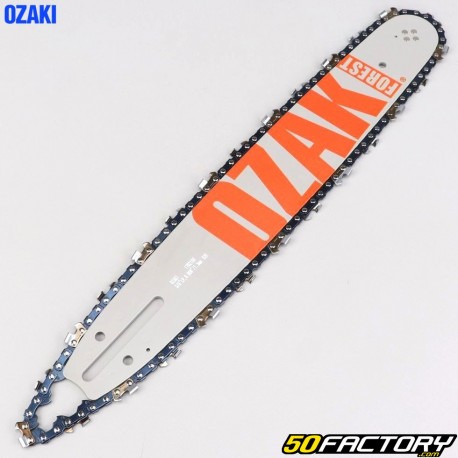

Ozaki 35cm, 1.3mm, 3/8'' LP, 52 Link Chainsaw Guide Bar (with Chain)

Ozaki Chainsaw Guide Bar with 52 Link Chain

New chainsaw guide and chain adaptable for Stihl, Oleomac, Alpina, Metabo and other brands chainsaws depending on the dimensions of the chain guide.

Technical characteristics and dimensions of the guide

• Brand: Ozaki
• Material: steel
• Colors: gray and orange
• Overall length: 415 mm
• Coupe length: 350 mm
• Inner width: 1.3 mm (.050")
• Chain tensioner mounting hole diameter: 7 mm
• Fixing diameter: 8 mm
• Fixing length: 77 mm

Technical characteristics and dimensions of the chain

• Brand: Ozaki
• Material: steel
• Colors: gray, golden yellow and blue
• Profile: semi-square
• Number of driving links: 52
• Drive link width: 1.3 mm (.050")
• Chain Pitch: 3/8" LP (Low Profile / Picco)

This kit is equivalent to the original OEM references:
Oregon: 140SPEA041, 140SDEA095, 140SXEA095
Pro steel: ZKZA35

Applications:

ALPINA: ELETTRA 160, ELETTRA 170, ELETTRA 270, ELETTRA 280, ENERGY 1.6, ENERGY 1.8, EURO-35, EURO-40, EURO-45, P34, P360, P361, P370, P390, P391Q, PR350, SINERGY 35, SINERGY 40, 330, 380, 432, 438

JONSERED: BABYSAW M36, M361, 361, 365, 370

McCULLOCH: 14A/S, 16E, 3214/6, 3516/8, C180, CALIFORNIA 90, CALIFORNIA/ARIZON, CS360, DAY.900, EAGERBEAVER, EAGERBEAVER 1030, EB2.3, EM16, EMAC1040, Electromac1030, Euromac 314/316, M1, M2, M2B, M4, M4B, M6, M6B, MAC930, MAC120, MAC130, MAC935, MAC940, MINI MAC, MM30, MM35, MAC436, MAC538E, MAC539E, MACCat839, MAC120, MACCat, PM310, PM320, PM36, PM360, PM364, PM370, PM380, PM394, PM400, PM470, PM480, PM484, PM494, PM510, PM6, PM730, 10, 12, 14, 330, 340, 474, 484, 735, 1035

OLEO-MAC: E140F, E160F, E300, OM-E200, 240, 241, 244, 935

PARTNER: 1535EL, 1540EL, 1640EL, 351CCS, 3CCS, ES2200, 371, 391, 542, 1640, 1835, 1840

STIHL: 009, 010, 011, 012, 018, 018C, 019, 019T, 020, 020T, 021, 023, 023C, 023L, 025, E10, E14, E140, E160, E180, MS160, MS170, MS171, 180, MS181, MS191, MS191T, MS192, MS192T, MS193, MS193C, MS193T, MS200T, MS201, MS201T, MS210, MS210C, MS210C-BE, MS211, MS230, MS231, MS241, MS250, MS251, MSE140, MSE140C, MSE140C-BQ, MSE170, MSE180C, MSE180C-BQ, MSE190, MSE200, MSE210, MSE230

To be sure of choose your chainsaw chain wisely, refer to our guide by clicking on this link.
When reassembling, also remember to check the tension of your chainsaw chain with the help of our guide by clicking You can consult it by clicking here..

Ozaki is a Japanese brand specializing in the manufacture of parts for chainsaws, brush cutters, etc. To discover our range of Ozaki products, click on this link.
