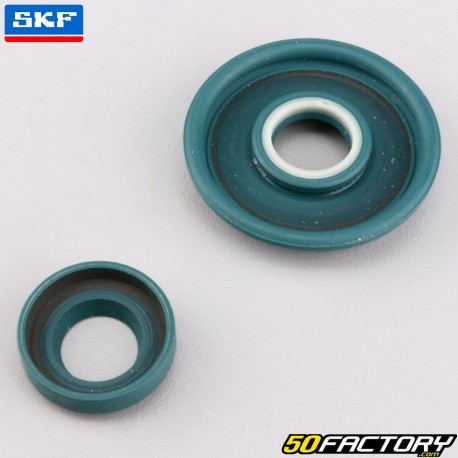

KYB shock absorber housing gaskets 16x50x10 mm Honda CRF 450 R (2009 - 2016), Yamaha YZF 450 (since 2010)... SKF

Upper suspension housing gaskets Ø16 mm SKF Honda CR-F 450 R...

Sealing ring and oil seal kit for new shock absorber rod adaptable for motorcycle cross 250cc and 450cc Honda CR FR from 2009 to 2016, Yamaha YZ-F since 2010... with KYB shock absorbers (Kayaba).

Includes

• 1 x seal spi (delivered to the unit)
• 1 x dust cover

Technical characteristics and dimensions of the repair kit

• Brand: SKF
• Materials: steel and rubber
• Shock absorber housing gasket color: green
• Dust cover color: green

• Joint dimensions: 16x50x10 mm
• Inner diameter of the joint: 16 mm
• Outer diameter of the joint: 50 mm
• Total gasket thickness: 10mm

• Dust cover dimensions: 15x29x9 mm
• Inner diameter of the dust cover: 15 mm
• Outer diameter of the dust cover: 29 mm
• Dust Cover Thickness: 9 mm

Applications:

HONDA CRF R 450 cc 2009 / 2016

SUZUKI RM-Z 250 cc 2016 / 2024

YAMAHA WR F 250 cc 2015 / 2023
YAMAHA YZ F 250 cc 2014 / 2024
YAMAHA YZ F 450 cc 2010 / 2024
YAMAHA YZ FX 250 cc 2015 / 2023
YAMAHA YZ FX 450 cc 2016 / 2023
YAMAHA YZ SM 450 cc 2010 / 2016


SKF is a Swedish company specializing in the manufacture of mechanical bearings for motor vehicles. To find out everything about the brand and discover our range of SKF products, click on this link.
