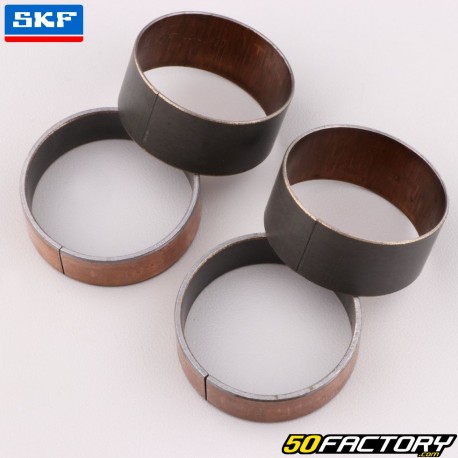

Showa fork friction rings Ø43 mm Aprilia RSV4 1000 RR, Honda CB 1300 (2005 - 2012)... SKF (set of 4)

SKF friction rings for Showa fork tubes Ø43 mm Aprilia RSV4...

New suspension arm inner and outer friction ring kit adaptable for 1000cc, 1300cc motorcycles and other displacements Aprilia RSV4 RR, Honda CB from 2005 to 2012... with 43 mm diameter Showa fork.

Technical characteristics and dimensions of the pairs of slides

• Brand: SKF
• Material: steel (with special coating)
• Colors: gray and bronze
• For Ø43 mm Showa fork
• Set of 4 rings (internal and external)

• Internal ring dimensions: 43x47x15 mm
• Inner diameter of the ring: 43 mm
• Outside diameter of the ring: 47 mm
• Ring Width: 15 mm

• External ring dimensions: 42x44x20 mm
• Inner diameter of the ring: 42 mm
• Outside diameter of the ring: 44 mm
• Ring Width: 20 mm

Applications:

APRILIA DORSODURO 250cc
APRILIA RSV4 RR 1000 cc 2015/2020
APRILIA RSV R 1000 cc 2010/2013
APRILIA RSV SL FALCO 1000 cc 1999/2003
APRILIA TUONO 1000 cc 2002/2003
APRILIA TUONO R 1000 cc 2007 / 2011

BMW F 900 R 900 cc 2020/2022
BMW R 1200 nineT 1200 cc 2017/2022

CAGIVA RAPTOR 1000 cc 2003 / 2005

HONDA CB 2000 cc
HONDA CB BIG ONE SUPER FOUR 1000 cc 1992/1996
HONDA CB F 2000 cc
HONDA CB R 1000 cc 2008/2017
HONDA CBR RR 1000 cc 2004/2007
HONDA CB RS 1100 cc 2017 / 2020
HONDA CB SF X-ELEVEN (X-11) 1100 cc 1999/2005
HONDA VF F 2000 cc
HONDA VFR XB 800 cc 2014/2018
HONDA XL VARADERO 1000 cc 2001/2009
HONDA XR R 400 cc 1996 / 2006
HONDA XR R / RF / L / S 250 cc 1991 / 1996

SUZUKI DL V-STROM 1000 cc 2002/2013
SUZUKI DR 250 cc 1990 / 1996
SUZUKI DR 350 cc 1990 / 1997
SUZUKI GSF BANDIT 1200 cc 1996 / 2006
SUZUKI GSF BANDIT 1250 cc 2007 / 2015
SUZUKI GSF S BANDIT 1200 cc 1996/2006
SUZUKI GSX-R 750 cc 2000 / 2005


SKF is a Swedish company specializing in the manufacture of mechanical bearings for motor vehicles. To find out everything about the brand and discover our range of SKF products, click on this link.
