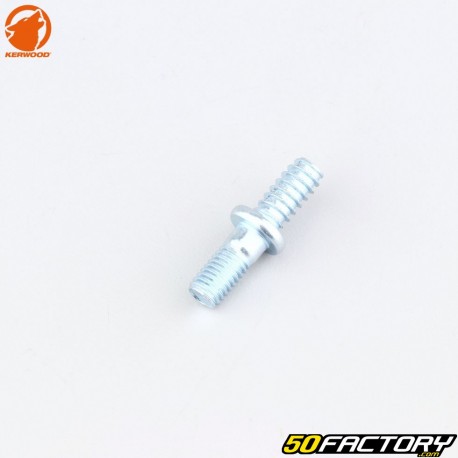

Chainsaw guide pin Stihl 021, E160, MS180, MSE200... Kerwood

Kerwood grub screw for Stihl 021, E160, MS180, MSE200 chainsaw guide...

New chain guide fixing stud suitable for Stihl 021, E160, MS180, MSE200 chainsaws...

Technical characteristics and dimensions of the chain case screw

• Brand: Kerwood
• Material: steel
• Colour: grey
• Overall length: 38 mm
• Diameter of the threads: 8 mm
• Thread length on guide side: 12 mm
• Thread pitch on guide side: 1.25
• Engine side thread length: 16 mm
• thread pitch on engine side: 2.00
• Standard thread (screw when turning clockwise)

This stud is equivalent to the original OEM reference:
Stihl: 1123 664 2400, 1123-664-2400, 11236642400

Applications:

Stihl: 017, 018, 019 T, 021, 023, 025, E140, E160, E180 C, MS150 C, MS170, MS171, MS180, MS181, MS190 T, MS192 C, MS192 T, MS210, MS211, MS230, MS250, MS251, MSA160C, MSA200 C, MSE140, MSE160, MSE170 C, MSE180, MSE190 C, MSE200, MSE210 C, MSE230 C

Kerwood is a French brand specializing in the manufacture of parts for chainsaws. To discover our range of products, click on this link.
