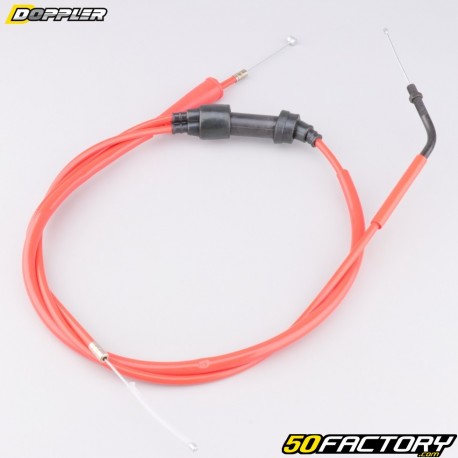

Gas cable Derbi Senda, Gilera SMT, RCR, Aprilia RX SX 50 Euro 3 and Euro 4 Doppler (red sheath)

Accelerator cable Doppler for motorcycle Derbi Senda, Gilera SMT, RCR, Aprilia RX et SX 50 Euro 3 and 4

New carburettor complete transmission sleeve adaptable for motorcycle 50cc Derbi Senda, Gilera SMT, RCR, Aprilia RX, SX ... motor Derbi Euro 3, Euro 4 from 2006.

The accelerator cable is connected to the carburetor, and to the oil pump for the models concerned, it allows you to control the opening of the throttle using the throttle grip located on the handlebars.

Accelerator cable technical characteristics and dimensions

• Mark: Doppler
• Sheath color: red
• Total cable length (at the ends): 1280 mm
• Total length sheath gas grip side: 565 mm
• Total length sheath side carburettor: 235 mm
• Total length sheath oil pump side: 530 mm
• Diameter of the cable section: 1.3 mm

• Gas handle side sheath end diameter: 6 mm
• Carburettor side sheath end diameter: 6 mm
• Diameter of sheath end oil pump side: 6 mm

• Throttle side cable end diameter: 6 mm
• Carburetor side cable end diameter: 3 mm
• Oil Pump Side Cable End Diameter: 3 mm

Doppler is a French brand specializing in the design of spare parts for two-wheelers. To find out everything about the brand and discover our range of products Doppler, click on this link.
