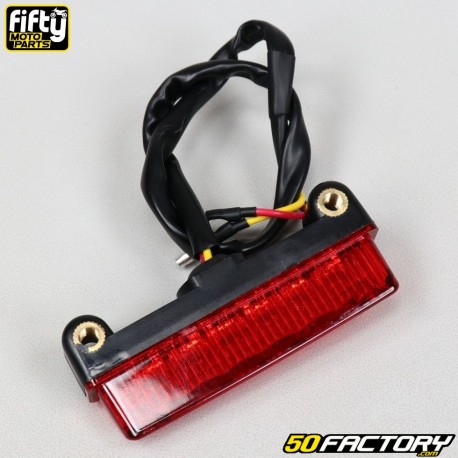

Type red tail light Beta RR 50, 125 ... (2011 - 2020) Fifty

Red LED light type Beta RR 50, 125 ...

Position light and rear stop new adaptable for motorcycle 50cc, 125cc Beta RR Motard, Enduro from 2011 to 2020 compatible with all motorcycle models with adaptations.

Rear light unit technical characteristics and dimensions

• Mark: Fifty moto parts
• Cabochon color: red
• Width of the fire: 76 mm
• Height of fire: 16 mm
• Fire fixing center distance: 64 mm
• Diameter fixing threads: 5 mm
• No threads: 0.80
• Rear position light: yes
• Rear brake light: yes
• 3 wire connection
• LED light

More details on type led rear light Beta for motorcycle 50cc

This mini LED red light is installed directly on the chassis of your vehicle. You will need to bring two screw type BTR 5x20 to install this fire which is fixed par the top (left photo above). Very often, the holes on the chassis of your bike are not good, you will have to drill new holes to install this mini fire and get an optimal rendering.

Connection: The color of the wires may vary depending on the type of fire. For this model here are the correspondences (right photo above, left part):

• black wire = mass
• yellow wire = night light
• red thread = stop

The electric harnesses (right picture above, right) are different depending on the makes and models of vehicles. You will obtain all the necessary information by consulting the technical drawings of the manufacturer's manual of your machine. Do not hesitate to bring you thimbles to make your changes.
