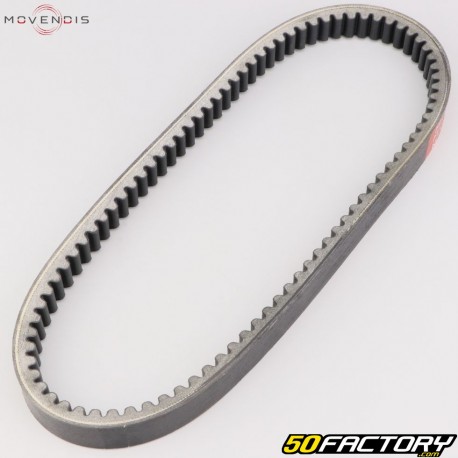

Belt Aprilia Leonardo, Benelli Velvet 250... 23x872 mm Movendis

Movendis 872x23 mm belt for maxi-scooter Aprilia Leonardo, Benelli Velvet 250 ...

New trapezoidal transmission belt adaptable for 250cc and 300cc maxi-scooter Aprilia Leonardo, Benelli Velvet...

It is essential to ensure the type of belt you need before ordering. To do this, simply measure the width, thickness and length of your old belt.

Technical characteristics of the belt

• Brand: Movendis
• Type of belt: notched
• Belt material: standard
• Belt markings: HP+ 323872-30

Dimensions given par the manufacturer

• Length: 872 mm
• Width: 23 mm
• Thickness: 11.4 mm

Dimensions measured par our care (see markers on the standard diagram)

• A - External belt length: 872 mm
• B - Internal belt length: 793 mm
• C - Belt width: 23 mm
• D - Belt thickness: 11.4 mm

To find out how to choose the right belt for you, refer to our guide by clicking You can consult it by clicking here..

This belt is equivalent to the original OEM references:
AP8122639, R16040171A0, 471170209, 91700200 et 5CG-17641-00

Applications:

APRILIA 250 LEONARDO 250 4T (ENG. YAMAHA) LC CARB 1 (1999 - 2001)
APRILIA 250 LEONARDO 250 4T ST (ENG. YAMAHA) LC CARB E1 (2001)
APRILIA 250 LEONARDO 250 4T (ENG. MINARELLI) LC CARB 1 (2002 - 2004)
APRILIA 300 LEONARDO 300 4T LC CARB 1 (2002 - 2004)
APRILIA 300 LEONARDO 300 4T LC CARB 1 (2003 - 2004)

BENELLI 250 VELVET 250 4T LC CARB 1 (1999 - 2001)
BENELLI 250 VELVET 250 4T TOURING LC CARB 1 (2002 - 2003)

MBK 250 SKYLINER 250 4T LC CARB (1997 - 1999)
MBK 250 SKYLINER 250 4T LC CARB 1 (2000 - 2003)

YAMAHA 250 MAJESTY 250 4T LC CARB (1998 - 1999)
YAMAHA 250 MAJESTY 250 4T LC CARB 1 (2000 - 2003)
YAMAHA 250 MAJESTY 250 4T D LC CARB 1 (1998 - 1999)
YAMAHA 250 MAJESTY 250 4T S LC CARB 1 (1998 - 1999)
YAMAHA 250 MAJESTY 250 4T LC CARB ABS E1 (1998 - 2003

Movendis is a brand specializing in the manufacture of transmission belts for two-wheelers, agricultural and industrial machinery. To discover our range of Movendis products, click on this link.
