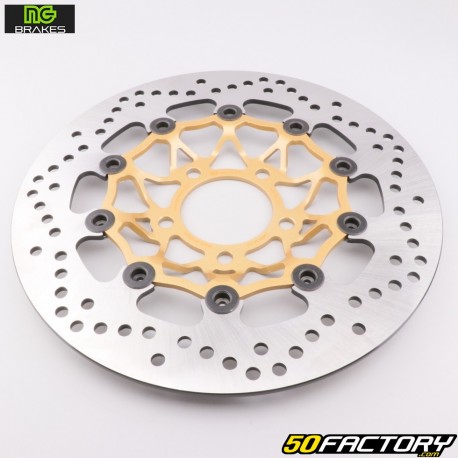

Front brake disc Suzuki GSF 600 Bandit, SV 650, GSX 750... Ø290 mm floating NG Brakes

Front brake disc NG Brakes for motorcycle Suzuki GSF 600 Bandit, SV 650, GSX 750 ...

New front brake plate adaptable for motorcycle 600cc, 750cc and other displacements Suzuki GSF Bandit, SV, GSX...

Be sure to check the dimensions of the disc you need before ordering. If the outer diameter of the brake disc is different from the original one, an offset tab (adaptor) will then have to be added. Also remember to put a drop of “threadlock” type glue on the disc screws during assembly. Finally, don't forget to replace your brake pads when changing discs.

Technical characteristics of the disc

• Mark: NG Brakes
• Manufacturer no .: 239
• Material: steel
• Inner disc color: golden yellow
• Number of fixing holes: 5
• Type of mounting holes: smooth
• Thickness: 4.6 mm

Dimensions of the disc (see marks on the typical diagram)

• A - Fixing center distance: 50 mm
• B - Fixing center distance: 82 mm
• C - Outer Diameter: 290 mm
• D - Diameter fixing holes: 10 mm
• E - Inner Diameter: 64 mm

To find out how to choose the right brake disc for you, refer to our guide by clicking You can consult it by clicking here..

Applications:

Suzuki
GSF BANDIT 97 400 FRONT
GSF BANDIT / BANDIT S 95/04 600 FRONT
GSF BANDIT N / Y 00/04 600 FRONT
GSX 89/92 750 FRONT
GSX /GSX F BANDIT 88/90 400 FRONT
GSX F 89/97 600 FRONT
GSX F 98/03 600 FRONT
GSX F SLINGSHOT 89/92 750 FRONT
GSX F W-K3 98/03 600 FRONT
GSX INAZUMA 00 400 FRONT
GSX K 88/95 600 FRONT
GSX KATANA 92 400 FRONT
GSX R 88/90 400 FRONT
GSX R 89 250 FRONT
GSX R IMPULSE S TYPE 94-> 400 FRONT
GSX S 88/95 600 FRONT
GSX X IMPULSE 94-> 400 FRONT
GSX-F 98/03 750 FRONT
GSX-F / GSX-FL 89/97 750 FRONT
RF P / RF R / RF T 93/97 600 FRONT
RF R 93/97 400 FRONT
RGV / RGV K / RGV L 89/90 250 FRONT
SV 99/02 650 FRONT
SV S 99/02 650 FRONT

NG Brakes is a Spanish brand specializing in the manufacture of brake discs for two-wheelers. To find out everything about the brand and discover our range of products NG Brakes, click on this link.
