MBK Voltage Regulator Booster, Nitro (before 2004), Yamaha DT Gilera GSM ... Athena

Voltage Regulator Athena for motorcycle, MBK scooter Booster, Nitro (before 2004), Yamaha DT Gilera GSM ...

Boîtier électrique redresseur de tension d'allumage neuf adaptable pour moto, scooter 50cc MBK Booster, Nitro before 2004, Yamaha DT Gilera GSM ...

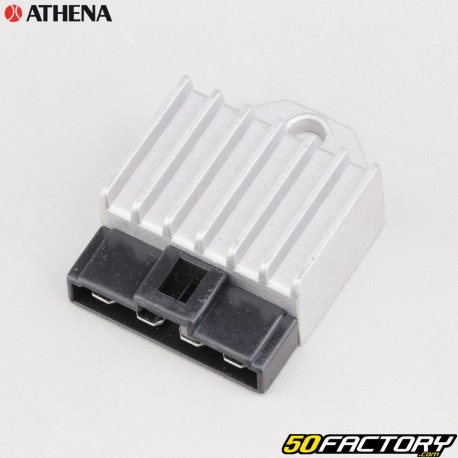

Voltage regulator technical characteristics and dimensions

• Mark: Athena
• Manufacturer Part Number: S410250401007
• Material: aluminium
• Colors: gray and black
• Supply voltage: 12 volts
• Number of terminals: 4
• Regulator Length: 58mm
• Regulator width: 43 mm
• Regulator Thickness: 19.5mm
• Fixing hole diameter: 6 mm

This voltage regulator is equivalent to the original OEM references:
APRILIA: AP8212799
BENELLI: R51540041A0, R51540011A0
BETA: 2727800000
DERBI: 00G01000841
ITALJET: 4407067, 3372902
KAWASAKI: 210661086
MALAGUTI: 02601100
MBK: 4VUH19600000

Applications:

APRILIA AMICO 50 cc 1990/1993
APRILIA AMICO 50 cc 1996/1997
APRILIA AMICO GL-GLE 50 cc 1994/1999
APRILIA AMICO LX SPORT CAT 50 cc 1995/1996
APRILIA AREA 51 LC 50 cc 1998/2002
APRILIA ATLANTIC SPRINT 500 cc 2004/2007
APRILIA CAPONORD 1200 cc 2013
APRILIA DORSODURO 250cc
APRILIA GULLIVER 50 cc 1995/1999
APRILIA GULLIVER LC 50 cc 1996/1999
APRILIA PEGASO 125 cc 1989/1995
APRILIA RALLY 50 cc 1995/2004
APRILIA RALLY LC 50 cc 1996/1999
APRILIA RED ROSE 125 cc 1987 / 1992
APRILIA RS4 125 cc 2017 / 2021
APRILIA RS4 50 cc 2018 / 2021
APRILIA RSV4 GP 1000 cc 2017/2020
APRILIA RX 4T 125 cc 2018 / 2020
APRILIA RX 50 cc 2018 / 2021
APRILIA SCARABEO 2000 cc
APRILIA SCARABEO 2T 50 cc 1993/2005
APRILIA SCARABEO 2T 50 cc 2019/2020
APRILIA SCARABEO 2T MOT.MINARELLI-YAMAHA 100 cc 2000/2001
APRILIA SCARABEO 4T 150 cc 1999/2004
APRILIA SCARABEO 4T 4V 50 cc 2009/2010
APRILIA SCARABEO 4T 4V 50 cc 2014/2017
APRILIA SCARABEO 4T 50 cc 2006
APRILIA SCARABEO LIGHT 500 cc 2008/2012
APRILIA SCARABEO STREET 50 cc 2019 / 2020
APRILIA SHIVER 25 cc
APRILIA SONIC 50 cc 1998/2002
APRILIA SONIC GP 50 cc 1998/2013
APRILIA SPORT CITY CUBE 125 cc 2012
APRILIA SR 150 cc 1999 / 2001
APRILIA SR AC MOTARD 50 cc 2018/2021
APRILIA SR AC MOT. ORIZZ. 50cc 1994/1996
APRILIA SR FINO 1994 MOT. VERT 50 cc 1992 / 1994
APRILIA SR LC 50 cc 1994 / 1999
APRILIA SR RACING LC 50 cc 2018 / 2021
APRILIA SR WWW 50 cc 1997/2002
APRILIA SX 4T 125 cc 2018 / 2020
APRILIA SX 50 cc 2018 / 2021
APRILIA TUONO 125 cc 2017/2021
APRILIA TUONO ABS 660 cc 2020/2022

BENELLI RACING LC 50 cc 1998 / 2006
BENELLI 491 RR LC 50 cc 2000/2006
BENELLI SP LC 50 cc 2000 / 2001
BENELLI 491 SPORT LC 50 cc 1998 / 2001
BENELLI ST 50 cc 2001 / 2006
BENELLI 491 SUPERBIKE 50 cc 1998/2001
BENELLI K2 100 cc 1999/2001
BENELLI K2 50 cc 2000/2001
BENELLI K2 LC 50 cc 1998/2001
BENELLI NAKED 50 cc 2002 / 2006
BENELLI PEPE 50 cc 1999/2012
BENELLI PEPE LX 50 cc 2003/2004

DERBI PaddoCK AC 50 cc 1998/1999
DERBI PaddoCK LC 50 cc 1998 / 1999
DERBI VAMOS 50 cc 1993/1994

HONDA C50 50 cc 1986
HONDA C CUB 90 cc 1984/1992
HONDA CM CUB 90 cc 1985/1992
HONDA MBX SD 50 cc 1987/1988
HONDA MTX R LC 80 cc 1987
HONDA NSR 50 cc 1989 / 1996
HONDA SA VISION I / II SERIE 50 cc 1991/1995
HONDA ST DAX 50 cc 1970/2000
HONDA ZB 50 cc 1988/1991

HYOSUNG SB 50 cc 1997/1999
HYOSUNG SB 50 cc 2006/2008
HYOSUNG SD 50 cc 1999/2004
HYOSUNG SF 50 cc 1999 / 2010

KAWASAKI BN A ELIMINATOR 125 cc 1998/2001
KAWASAKI KLX 110 cc 2002 / 2009

MALAGUTI CENTRO BASE 50 cc 1993 / 1996
MALAGUTI CENTRO SL 50 cc 1994/1997
MALAGUTI CENTRO SL KAT 50 cc 1998/2000
MALAGUTI CIAK 4T 125 cc 2001/2003
MALAGUTI CIAK 200 cc
MALAGUTI CROSSER CR1 50 cc 1996/1998
MALAGUTI F10 JET LINE / KAT 50 cc 1994/2011
MALAGUTI F12 PHANTOM 100 cc 2000
MALAGUTI F12 PHANTOM AC / KAT / RESTYLING 50 cc 1994/2002
MALAGUTI F12 PHANTOM LC 50 cc 1996/2004
MALAGUTI F12R PHANTOM AC 50 cc 2008/2011
MALAGUTI F15 FIREFOX LC / KAT 50 cc 1997/2002
MALAGUTI XSM 50 cc 2008 / 2011
MALAGUTI XTM 50 cc 2008 / 2011
MALAGUTI YESTERDAY EURO 50 cc 1998 / 2001

MBK BOOSTER CW 50 cc 1993/1997
MBK BOOSTER CW R ROAD 50 cc 1995
MBK BOOSTER CW RS NG 50 cc 1995 / 2002
MBK BOOSTER CW RSP ROCKET 50 cc 1996 / 1999
MBK BOOSTER CW RSX TRACK 50 cc 1997 / 1999
MBK EVOLIS 50 cc 1993/1998
MBK EVOLIS 80 cc 1993/1999
MBK EW STUNT 50 cc 2000/2002
MBK FIZZ 50 cc 1995/1997
MBK FLIPPER 50 cc 1999/2002
MBK YA R FORTE 50 cc 1995 / 1998
MBK YN OVETTO 100 cc 1999/2003
MBK YN R OVETTO 50 cc 1997/2001
MBK YQ L NITRO JAGUAR 50 cc 2001 / 2002
MBK YQ NITRO 100 cc 2000/2003
MBK YQ NITRO EURO2 50 cc 1998/2002

PIAGGIO TYPHOON 50 cc 2018/2021

SUZUKI AH ADDRESS 100 cc 1995/1996
SUZUKI AH ADDRESS 50 cc 1992/1995
SUZUKI AP 50 cc 1995 / 1996
SUZUKI CP 50 cc 1989 / 1993
SUZUKI DRZ 110 cc 2003/2005

SYM DD 50 cc 2003 / 2004
SYM FLASH 50 cc 1998/2000
SYM FREE 50 cc 1997 / 2000
SYM JET 50 cc 1997 / 2002
SYM JET EURO X EU2 50 cc 2009/2015
SYM JUNGLE 50 cc 1997/2001
SYM RED DEVIL 50 cc 1998/2001
SYM SHARK 50 cc 2000/2003
SYM SHARK RS 50 cc 2004
SYM SUPER DUKE 125 cc 1996/1998
SYM SUPER FANCY 50 cc 1996/2001

YAMAHA BW'S BUMP 50 cc 1997 / 1999
YAMAHA CW BW'S ORIGINAL EUR 2 50 cc 1991/1996
YAMAHA CW RS NG 50 cc 1995 / 2002
YAMAHA CW RS SPY 50 cc 1996 / 1999
YAMAHA SLIDER 50 cc 2000/2002
YAMAHA TW TRAILWAY 200 cc 1987/1991
YAMAHA YA R AXIS 50 cc 1996/1998
YAMAHA YE ZEST 50 cc 1993 / 1999
YAMAHA YE ZEST 80 cc 1994 / 1997
YAMAHA YH WHY 50 cc 1999/2002
YAMAHA YM BREEZE 50 cc 1995/1998
YAMAHA YN NEO'S 100 cc 1999/2001
YAMAHA YN NEO'S 50 cc 1997/2001
YAMAHA YQ AEROX 100 cc 2000 / 2003
YAMAHA YQ AEROX LC 50 cc 1997/1998
YAMAHA YQ AEROX LC 50 cc 2002/2003
YAMAHA YQ-L AERO2 cc

Athena is an Italian brand specializing in the manufacture of spare parts for motorcycles and scooters. To find out everything about the brand and discover our range of products Athena, click on this link.
