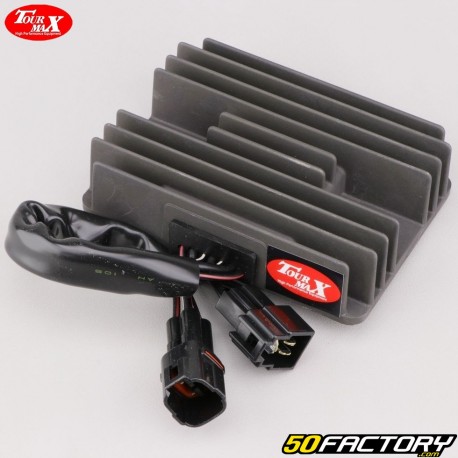

New ignition voltage rectifier electrical box suitable for 650cc, 900cc and other Honda CB motorcycles...

Voltage regulator technical characteristics and dimensions

• Brand: TourMax
• Material: aluminium
• Colors: gray and black
• Supply voltage: 12 volts
• Number of plugs: 2
• Number of terminals: 7
• Regulator length (without wires): 80 mm
• Regulator length (with wires): 290 mm
• Regulator width: 110 mm
• Regulator Thickness: 28mm
• Inner width fixing holes: 7 mm
• Fixing distance: 73 mm

This voltage regulator is equivalent to the original OEM references:
Suzuki: 32800-21H00, 32800-18H00, 32800-41F11, 32800-41G10, 32800-47H00, 32800-47H10

Applications:

Arctic Cat
375 2x4/4x4 (02)
Automatic 400 (03/08)
Manual 400 (01/03)
Automatic 500 (00/09)
Manual 500 (01/08)

Suzuki
DL 250 V-Strom (17/18)
GSX-R 250 ABS (17/18)
GW 250 Inazuma (13/17)
GSX-R 600 / 750 (06 / 17)
DL 650 V-Strom (08/17)
GSF 650 Bandit/S (07/12)
GSX-F 650 (08/16)
SFV 650 Gladius (09/15)
LTA-X 700 King Quad (05/07)
GSR 750 (11/12)
VL 800 Intruder Volusia (01/05)
VL 800 Intruder .
VZ 800 Intruder .
GSX-R 1000 (05/16)
GSF 1250 Bandit/N/S (07/12)
GSX-F/FA 1250 (10/12)
GSX-F 1250 (10/12)
VL 1500 Intruder .

Max turn is a Japanese brand specializing in the manufacture of spare parts for motorcycles, quads, etc. To discover our range of Tour Max products, click on this link.
