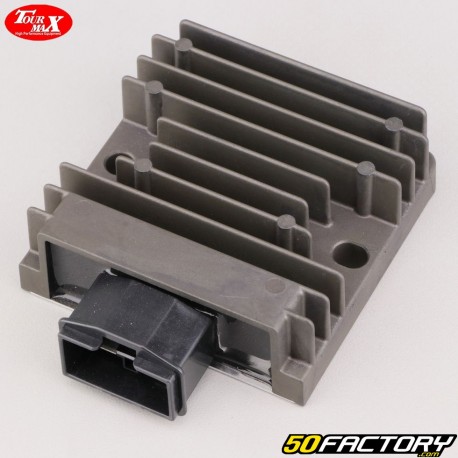

Honda Voltage Regulator CBR 125, 250 and 300 (since 2004)... Max Turn

Max Turn Voltage Regulator for Motorcycle, Motorbike cross Honda CBR 125, 250 and 300 ...

New ignition voltage rectifier electrical box suitable for motorcycle, motorbike cross 125cc, 250cc and 300cc Honda CBR since 2004 ...

Voltage regulator technical characteristics and dimensions

• Brand: TourMax
• Material: aluminium
• Colors: gray and black
• Supply voltage: 12 volts
• Number of terminals: 5
• Regulator Length: 100mm
• Regulator width: 80 mm
• Regulator Thickness: 28mm
• Diameter and internal width of fixing holes: 6 mm
• Fixing distance: 66 mm

This voltage regulator is equivalent to the original OEM part number:
Honda: 31600-KVK-901

Applications:

Honda
CBR 125 (11/13)
CBR 250 R (11/14)
CRF-L 250 (13/17)
CRF-M 250 (13/17)
CBF 300 (15/16)
CBR 300 (14/17)

Max turn is a Japanese brand specializing in the manufacture of spare parts for motorcycles, quads, etc. To discover our range of Tour Max products, click on this link.
