Aluminum cylinder piston Ø48.46 mm Kawasaki KX 85 (2001 - 2013) original (standard exchange)

Send out the old, get the new. It's that simple!

Top engine for motorcycle cross Kawasaki KX85

Complete piston liner kit with original cylinder for 85cc Kawasaki KX motorcycle from 2001 to 2013.

This used original cylinder has been factory reconditioned to the characteristics of a new product.

We offer this complete pack with a new piston and seals for a perfect fit. Also remember to replace the 14x18x17 mm piston pin needle bearing which is not included in the top end kits (this bearing is sold separately).

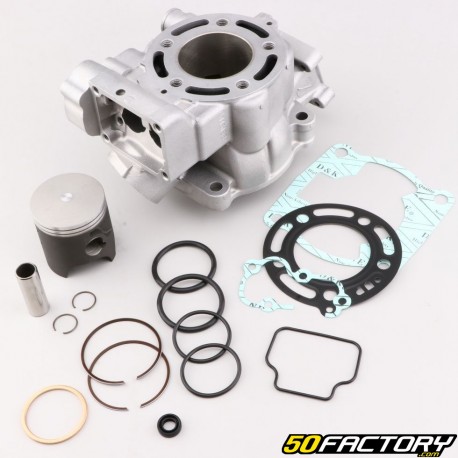

This piston cylinder block kit includes

• 1 x cylinder in standard exchange (rebuilt at the factory)
• 1 x piston
• 1 x set of seals
• 2 x piston rings
• 2 x circlips
• 1 x gudgeon pin

Technical characteristics and dimensions of the cylinder block kit

• Cylinder brand: Kawasaki
• Original cylinder reference: 110055070 / 110051974
• Cylinder material: aluminum
• Piston diameter: 48.46 mm
• Piston pin diameter: 14 mm

Standard exchange parts, please follow the following instructions:

• 1) Place your order on the Kawasaki cylinder kit website
• 2) Send us your old Kawasaki cylinder identical original to address: 50 Factory - 28 rue Jean Giraud - 79140 Cerizay. With the name and order number in the box.
• 3) Upon receipt of the old cylinder, we will send you a new cylinder kit within 24 hours (excluding weekends and public holidays).

To order the needle cage compatible with the cylinder, click on this link.
