Description

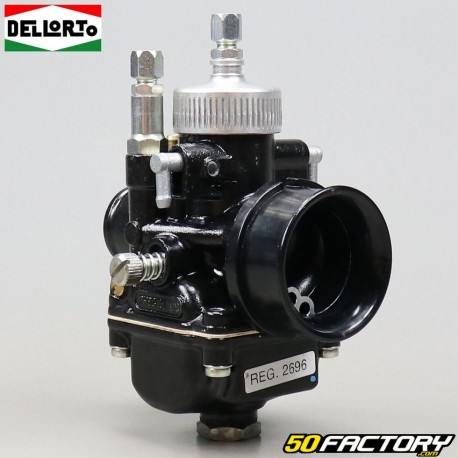

Carburettor Dellorto PHBG 21 Racing
Adaptable new intake system for motorcycle, scooter, moped, quad 50cc and other displacements with modifications of air intake on certain models. Mounting is possible on your original flexible intake pipe. The carburetor is the system that is used to supply the engine with a gas mixture (air and gasoline, or even oil on models for 2 time).
Carburettor technical characteristics and dimensions
- Mark: Dellorto
- Type: PHBG
- Diameter: 21 mm
- Colour: black
- Float chamber: aluminium
- Supplied with a main jet of size: 92
- Throttle cable connection: right
- Cable connection starter: right
- Outer diameter ring air filter side: 38 mm
- Outer diameter thread air filter side: 32 mm
- Intake Pipe Side Outer Diameter: 25 mm
- Vacuum connection (connected to fuel valve): yes
- Heater connection (connected to cooling system): no
- Lubrication fitting (connected to the oil pump): yes
- Carburettor dimensions shown on the diagram
COMPATIBLE MODELS
Compatibility models for guidance, it is advisable to disassemble the part to be replaced beforehand and check the correspondence with pictures and dimensions indicated on the site.
Cyclomoteur
Motobécane
- AV46 2T
- AV56 2T
