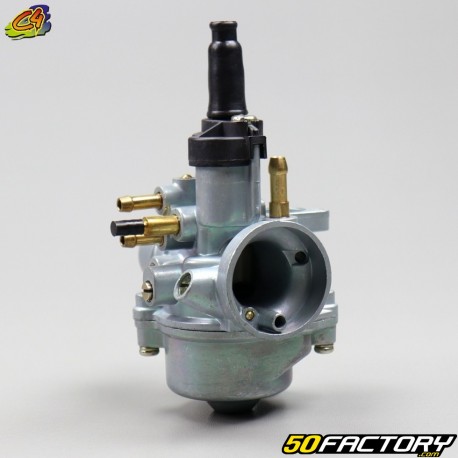

C4 PHVA 17.5 Carburetor TS (without starthe)

Carburettor type PHVA 17.5 without starter

Adaptable new intake system for motorcycle, scooter, moped 50cc 2 time. The carburetor is the system that is used to power the engine gas mixture (air and gasoline, or oil on models for 2 time).

Attention carburetor delivered without system of startst.

Carburettor technical characteristics and dimensions

• Brand: Adaptable
• Type: PHVA
• Diameter: 17.5 mm
• Colour: grey
• Float chamber: aluminium
• Supplied with a main jet of size: 86

• Throttle cable connection: right
• Outer diameter air filter side: 37 mm
• Intake Pipe Side Outer Diameter: 24 mm
• Vacuum connection (connected to fuel valve): yes
• Heater connections (connected to the radiator circuit): yes
• Lubrication fitting (connected to the oil pump): yes
• Carburettor dimensions shown on the diagram
