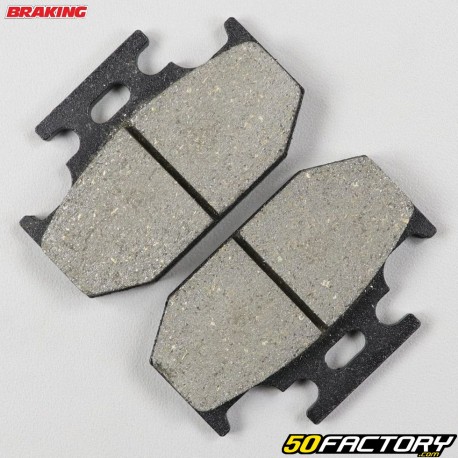

Organic brake pads Yamaha WR 125, Kawasaki KDX 250, Suzuki DR 250 ... Braking

Front or rear brake pads Braking Yamaha WR 125, Kawasaki KDX 250, Suzuki DR 250 ...

Pair of new disc brake linings adaptable for motorbike 125cc, 250cc and other cylinders Yamaha WR DTRE, Kawasaki KDX, KLX R, Suzuki DR ... These brake pads can also be mounted on the front or rear on other models.

Brake pad technical characteristics and dimensions

• Mark: Braking
• Outer color of the pads: black
• Overall length: 62 mm
• Overall height: 41 mm
• Thickness: 9 mm
• Inner width fixing holes: 5 mm
• Organic type platelets
• Pad dimensions shown on the diagram

These pads are equivalent to SBS brake pads D76805AM703.

Applications:

KAWASAKI
KDX125 1990 - 2006
KDX200 1989 - 2003
KDX220 1994 - 2005
KDX250 1991 - 1997
KLX 650 - 1993
KLX R 250 - 1993
KLX R 650 - 1993
KLX S 650 - 1993
KX125 1989 - 1994
KX250 1989 - 1994
KX500 1989 - 1995

SUZUKI
COBRA 250
DR BIG 80
DR R350 1994 - 1999
DR S 250 1990
DR S350 1989 - 1993
DR S350 1996 - 1999
DR SE 650 1996 - 2009
DR Z250 2001 - 2007
RM125 1989 - 1995
RM250 1989 - 1995
RMX S250 1992 - 1998
TS R 125 1989
TS R 200 1989

YAMAHA
DT X125 2005 - 2006
DT X SM 125 2005
SEROW 250 - 2005
TRICKER 250 - 2005
TT R 250
TT R600 1993 - 1995
WR 125 1989 - 1997
WR 250 1990 - 1997
WR F 400 1998
WR R200 1992 - 1995
WR Z500 1992 - 1993
XT X250 2005 - 2006
YZ125 1990 - 1997
YZ250 1990 - 1997
YZF400 1998
YZ RALLY 360 - 1990
YZF R 125
