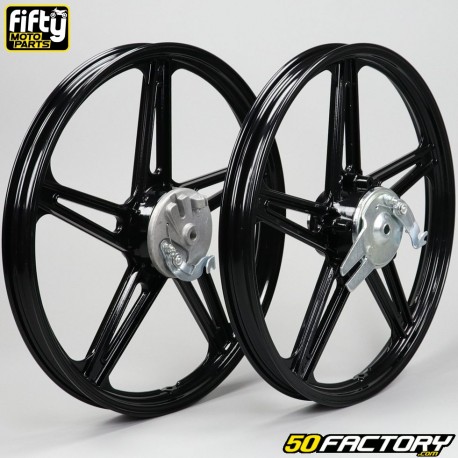

17 inch rims type Bernardi wheels Peugeot 103 Chrono, MVL... Fifty black

Bernardi type black front and rear rims Peugeot 103 Chrono, MVL...

New front and rear stick wheels adaptable for moped, moped 50cc Peugeot 103 MVL, Chrono... For the assembly of these rims, you must provide the wheel axles, the outer wheel spacers (dimensions according to assembly) then the elements such as the freewheel, the crown, the tires. .. A 12x18x10 mm spacer comes with the rims, you have to mount this spacer inside the front rim between the brake shield and the bearing. We do not have information regarding the dimensions of the outer spacers required for mounting on your moped model.

The front brake flange is intended for mounting on a type SP fork, on a type fork. MVL, Chrono... it's up to you to adapt a flange stop (longer screw) so that it holds or to use your old original Ø90 mm flange. The front rim can be mounted with a meter trainer.

This set of wheels includes

• 1 x front rim with bearings
• 1 x rear rim with bearings
• 1 x front brake flange with shoes
• 1 x rear brake flange with shoes
• 2 x wheel axles (the dimensions of the wheel axles provided are not compliant, remember to take axles sold separately)

Technical characteristics and dimensions of the rim pair

• Mark: Fifty moto parts
• Rim color: black
• Rims material: aluminum
• Rims type 17 inch, outer diameter: 455 mm

• Front rim dimensions: 1.60x17 inches
• Total rim width (without flange): 66 mm
• Inner diameter bearings (axis passage): 12 mm
• Total clamping width (passage between fork sliders): 80 mm

• Rear rim dimensions: inches
• Total rim width (without flange): 98 mm
• Inner diameter bearings (axis passage): 12 mm
• Freewheel Thread Diameter: 35 mm
• No threading: 1.00

We would like to point out that these rims may come with manufacturer scratches, please take this into account.
