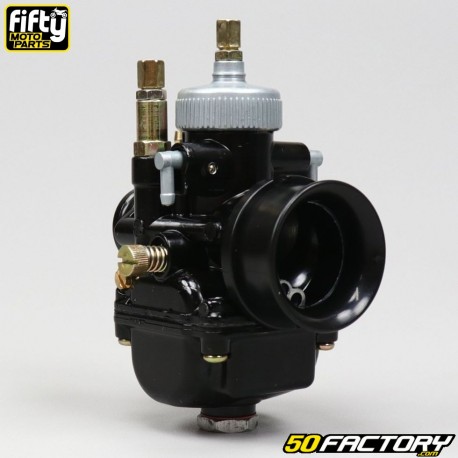

Carburettor type PHBG 19 Fifty black

Carburettor Fifty black type Dellorto PHBG 19

New time engine intake system adaptable for motorcycle, scooter, quad, moped ... The carburetor is the system used to supply the engine with a gaseous mixture (air and gasoline, or even oil on models). ¨les for 2 time).

Carburettor technical characteristics and dimensions

• Mark: Fifty moto parts
• Type: PHBG
• Diameter: 19 mm
• Colour: black
• Float chamber: aluminium
• Supplied with a main jet of size: 75

• Throttle cable connection: right
• Cable connection starter: right

• Outer diameter ring air filter side: 38 mm
• Outer thread diameter on the air thread side: 32 mm
• Intake Pipe Side Outer Diameter: 25 mm

• Vacuum connection (connected to fuel valve): yes
• Heater connection (connected to cooling system): no
• Lubrication fitting (connected to the oil pump): yes
• Carburettor dimensions shown on the diagram
