Swingarm bearings Suzuki RM125 (1989 - 1991) Prox

Swingarm bearings and spacers Prox Suzuki RM 125

Replacement kit for rings and bushings right and left of new rear arm adaptable for motorcycles cross 125cc Suzuki RM from 1989 to 1991.

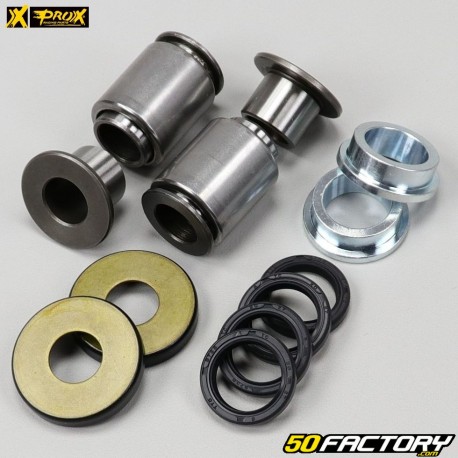

This reconditioning kit includes

• 4 x inner rings
• 2 x Needle Bearings (Bushings) TA2030
• 2 x rubber/steel seals
• 4 x rubber seals
• 2 x inner rings of oil seals

Technical characteristics and dimensions of the repair kit

• Mark: Prox
• Inner ring dimensions: 15x20x38 mm
• Inner Diameter (Swingarm Shaft Diameter): 15mm
• Outer diameter: 20 mm
• Overall length: 38 mm
• Needle sleeve dimensions: 20x27x30 mm
• Dimensions of seals rubber, steel: 15.2x38x6 mm
• Rubber gasket dimensions: 22x27x4.8 mm
