KTM rear brake disc SX 85 to 200 mm wave Braking

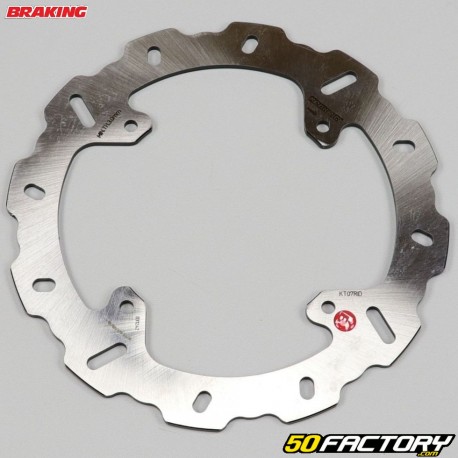

Rear brake disc 200 mm Braking KTM SX 85

New adaptable rear brake plate for motorcycle cross, enduro 85cc KTM SX.

It is essential to make sure of the type of disc you need before ordering by checking its dimensions. The outside diameter of some brake discs may differ from the original assembly, a dropout (adapter) must then be added in this case. It is also necessary to replace your brake pads when changing the disc. Also remember to put a drop of "thread lock" type glue on the disc screws to prevent them from loosening.

Disc technical characteristics and dimensions

• Mark: Braking
• Material: steel
• Disc Outer Diameter: 200mm
• Number of fixing holes: 4
• Diameter of fixing holes: 6 mm
• Mounting for flat head screws
• Fixing centers: 98 mm and 125 mm
• Inner diameter of the disc: 152 mm
• Disc Thickness: 3.5 mm
• Disk dimensions shown on the diagram
