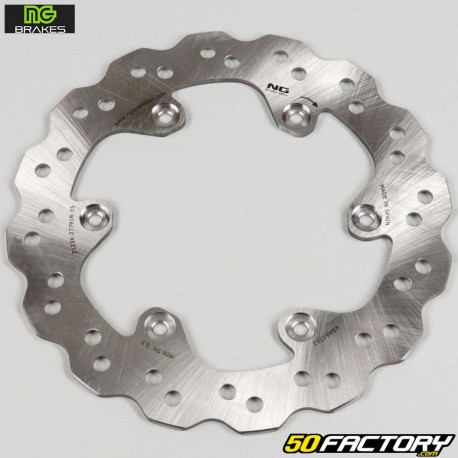

Rear brake disc Fantic XE, XM 50, 125... (since 2021) Ø220 mm NG Brakes

Rear brake disc 220 mm NG Brakes Fantic XE, 50M, 125...

New adaptable rear brake plate for motorcycle cross, enduro 50cc and 125cc Fantic XE, XM, XX and XEF since 2021.

It is essential to make sure of the type of disc you need before ordering by checking its dimensions. The outside diameter of some brake discs may differ from the original assembly, a dropout (adapter) must then be added in this case. It is also necessary to replace your brake pads when changing the disc. Also remember to put a drop of "thread lock" type glue on the disc screws to prevent them from loosening.

Disc technical characteristics and dimensions

• Mark: NG Brakes
• Manufacturer Part Number: 2123X
• Material: steel
• Disc Outer Diameter: 220mm
• Number of fixing holes: 6
• Diameter of fixing holes: 6 mm
• Mounting for flat head screws
• Fixing centers: 66 mm, 115 mm and 133 mm
• Disc Thickness: 4 mm
• Disk dimensions shown on the diagram
