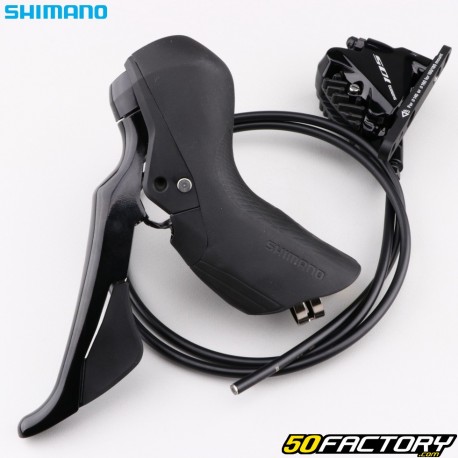

Complete front brake "road" bike Shimano 105

Shimano 105 caliper, master cylinder and brake hose kit

New hydraulic front braking pack adaptable for road bikes, gravel bikes, etc. This braking system offers you permanent precision in all weather conditions with strong braking power and flexibility when changing gears.

The “ONE WAY BLEEDING” system has been developed to prevent any air from entering the hydraulic system. The unidirectional oil routing has been refined to prevent air bubbles from getting stuck. Coupled with a funnel with mineral oil, it offers a clean and easy-to-use purge system.

Includes

• 1 x front brake caliper
• 1 x game pads
• 1 x Left Shifter
• 1 x brake hose
• 1 x derailleur housing
• 1 x derailleur cable

Technical characteristics and dimensions of the brake assembly

• Brand: Shimano
• Modèle: 105
• Colour: black

• Hose model: SM-BH90-JK-SSR
• Length of the hose: 1000 mm
• Delivered with insert and cable end

• Caliper Model: BR-7070
• Total length of the caliper: 67 mm
• Total caliper width: 35 mm
• Mounting type: Flatmount

• Front derailleur shifter model: ST-R70720
• Total length of the order: 185 mm
• Shifting gears from the brake lever
• Delivered with stopper and cable end

• Adapter length: 83 mm
• Fixing distance: 69 mm
• For 140mm or 160mm brake disc

• Pad trim: resin
• Pad model: L05A
• Pad width: 34mm
• Pad height: 37 mm
• Pad thickness: 10mm
• Diameter fixing holes: 3 mm
• With spring (clip) between plates and pin
