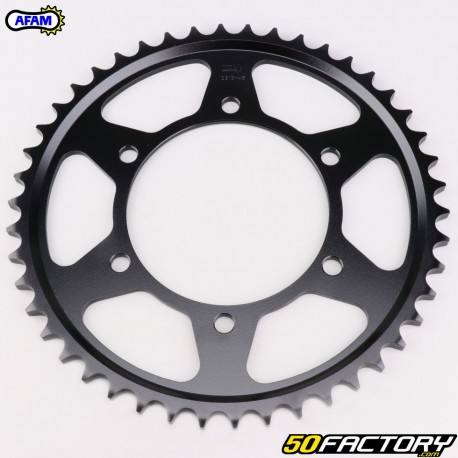

Rear sprocket 46 teeth steel 530 Yamaha FZS 600 Fazer, YZF-R1, Suzuki GSX-R 1000 ... Afam

Rear sprocket 46 teeth Afam black Yamaha FZS 600 Fazer, R1, Suzuki GSX-R 1000 ...

Transmission tray par new chain adaptable for motorcycle 600cc, 1000cc and other displacements Yamaha FZS Fazer, YZF-R1, Suzuki GSX-R...

Technical characteristics of the crown

• Mark: Afam
• Manufacturer Part Number: 12813-46
• Transmission type (steps): 530
• Number of teeth: 46
• Material: steel
• Colour: black
• Number of fixing holes: 6
• Type of mounting holes: smooth
• Thickness: 8.9 mm

Dimensions of the rear pinion (see marks on the typical drawing)

• A - Fixing center distance: 65 mm
• B - Fixing center distance: 112 mm
• C - Fixing center distance: 130 mm
• D - Diameter of fixing holes: 10 mm
• E - Inner diameter of the crown: 110 mm

Applications:

SUZUKI GSX-R 1000 (2009 - 2016)
SUZUKI GSX-R 1000A ABS (2015 - 2016)
SUZUKI GSX-R 1000 Z (2013)

YAMAHA FZ 1000 N (2006 - 2015)
YAMAHA FZ 1000 NA Fazer ABS (2008 - 2015)
YAMAHA FZ 1000 S Fazer (2006 - 2015)
YAMAHA FZ 1000 SA Fazer ABS (2008 - 2015)
YAMAHA FZ 600 N (2004 - 2007)
YAMAHA FZ 600 S Fazer (2004 - 2007)
YAMAHA FZ 600 S Fazer ABS (2006 - 2007)
YAMAHA FZ 600 S2 (2007 - 2010)
YAMAHA FZ 600 S2 Fazer (2007 - 2009)
YAMAHA FZ 600 S2 Fazer ABS (2008 - 2009)
YAMAHA FZS 1000 Fazer (2001 - 2006)
YAMAHA MT 01 (2005 - 2012)
YAMAHA MT 01S (2009)
YAMAHA
YAMAHA XJR 1300
YAMAHA XJR 1300 C Racer (2016 - 2017)
YAMAHA YZF-R 1 (1998 - 2014)
YAMAHA YZF-R 6 (2003 - 2005)
YAMAHA YZF-R 7 OW02 (1999 - 2003)

Before ordering, it is essential to ensure the type of transmission you need. All the parts, namely the chain, the pinion and the crown, must have the same pitch. To find out more, click this link.
