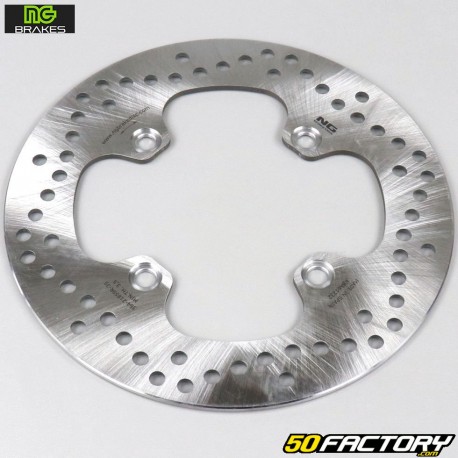

Honda SH brake disc, Swing, Pantheon, Keeway... Ø240 mm NG Brakes

240 mm front or rear brake disc NG Brakes Honda SH, Swing, Pantheon, Keeway ...

New front or rear brake plate adaptable for scooter 125cc, 250cc ... Honda SH, Swing, Pantheon, Keeway ...

It is essential to make sure of the type of disc you need before ordering by checking its dimensions. The outside diameter of some brake discs may differ from the original assembly, a dropout (adapter) must then be added in this case. It is also necessary to replace your brake pads when changing the disc. Also remember to put a drop of "thread lock" type glue on the disc screws to prevent them from loosening.

Disc technical characteristics and dimensions

• Mark: NG Brakes
• Manufacturer no .: 364
• Material: steel
• Disc Outer Diameter: 240mm
• Number of fixing holes: 4
• Diameter of fixing holes: 10 mm
• Mounting for flat head screws
• Fixing centers: 88 mm and 125 mm
• Disc Thickness: 4 mm
• Disk dimensions shown on the diagram

Front brake disc compatible with models:

HONDA @ NES 125â†'
HONDA PANTHEON FES 2 125 98/02
HONDA PANTHEON FES 4 125 98/07
HONDA SH i SCOOPY ABS 125 19
HONDA SH i / SH i CBS SCOOPY 125 09 / 18
HONDA SH i SPORT SCOOPY 125 09/17
HONDA S-WING / S-WING ABS 125 07/11
HONDA @ NES 150â†'
HONDA PHANTHEON FES 2 150 98/02
HONDA PHANTHEON FES 4 150 03/07
HONDA SH i / SH i ABS SCOOPY 150 09 / 19
HONDA SH i SPORTY SCOOPY 150 09/11
HONDA S-WIN FES 150 07
HONDA S-WING 150 08/09
HONDA CB TWO FIFTY 250 91/06
HONDA FORESIGHT FES 250 97/98
HONDA FORESIGHT FES 250 99/07
HONDA FORZA NSS 250 00/04
HONDA FORZA X NSS / XE NSS 250 05 / 07
HONDA JAZZ 250 01/04
HONDA PANTHEON 250 98
KEEWAY Efi - RE-EVOLUTION 125 08/12
KEEWAY LOGIK 125 08/12
KEEWAY LOGIK i 4 Efi CBS 125 13/19
KEEWAY OUTLOOK 150 07
PEUGEOT SV 250 01/07

Rear brake disc compatible with models:

KEEWAY Efi - RE-EVOLUTION 125 08/12
KEEWAY LOGIK 125 08/12
KEEWAY OUTLOOK 150 07
